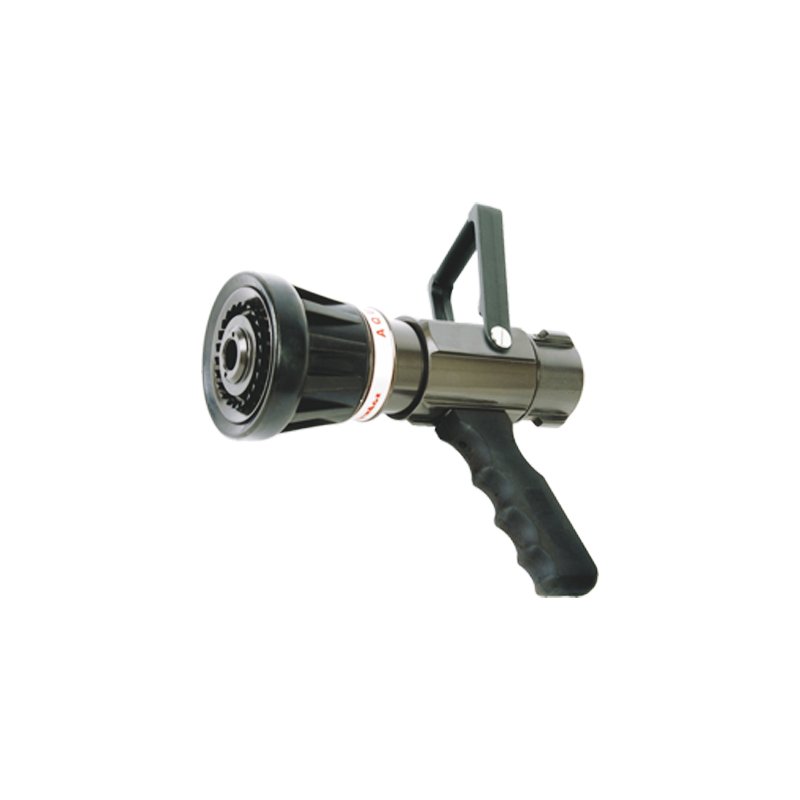

Multipurpose Combination Flow Nozzle : Aqua Jet

– Solid Jet and Fog facility simultaneously or independently
– Special design gives low back Pressure
– Durable light hard anodized construction
– Straight Stream to Dense fog & flush without shut-off
– Ball Valve for flow control
– Anti-slop rubber moulded grip

Technical Specification:

– Bearing IS 903 mark
– Intel Connection: 2 1/2 Male Instantaneous
– Outlet: Solid Jet nozzle
– Operating Pressure: 150 PSL MAX,/ 10.5 Kg/cm2

Category: Nozzles

Description
Reviews (0)

Product Code	Bore (Dia)	Length (With Threaded Inlet)	Weight (Lbs / Kg)	Flow Rate – Solid Jet	Flow Rate – Fog	Flow Rate – Jet + Fog	Inlet
				GPM / LPM	GPM / LPM	GPM / LPM
N-MP-16	1½″	9″	5.1 / 2.3	91 / 350	79 / 300	170 / 650	2½″ Male Instantaneous NH (F) Threads NST (F) Threads BSP (F) Threads
N-MP-19	1½″	9″	5.1 / 2.3	131 / 500	79 / 300	210 / 800	—
N-MP-25	1½″	9″	5.1 / 2.3	226 / 860	79 / 300	305 / 1160	—
