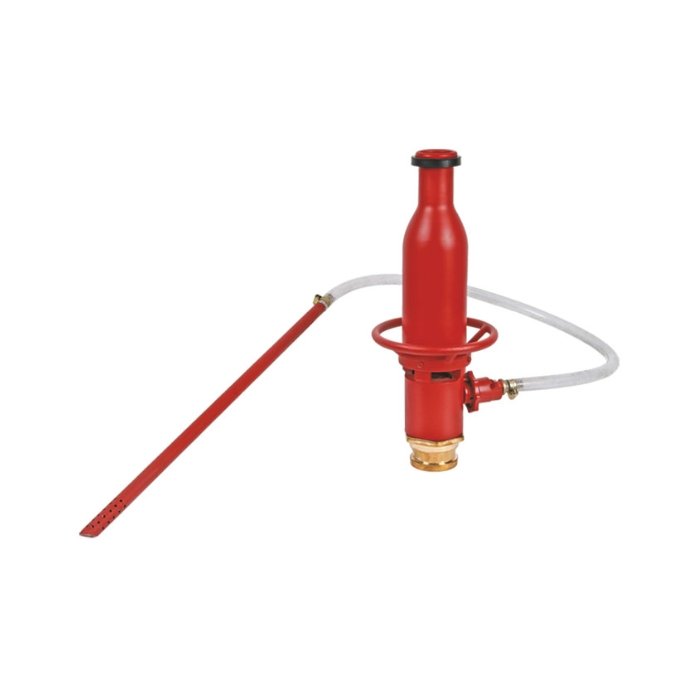

Low Expansion Foam Branch Pipe: Model B

Foam Branchpipes are designed to produce long coherent throws of low expansion foam using all types of foam concentrates. These Foam Branchpipes are air-aspirating types made of aluminium alloy tubes and cast bronze inlets.

Technical Specification:

– Low expansion foam branch with 225 LPM flow at 7 bar with an expansion ratio of 1:2 to 1:10
– With in-built foam inductor along with pick-up tube and dip pipe
– Built-in foam proportioning valve from 0 to 6% induction
– Built-in shut-off valve
